EGFR Kinase Activity Assay Kit: A Core Tool from Target Mechanism to Precision Drug Screening

Author: Senior Product Manager of UA Views：13

This article systematically elucidates the central driving role of EGFR as a receptor tyrosine kinase in tumorigenesis and development, as well as the impact of its mutation types on drug development, focusing on the technical principles and application systems of the EGFR kinase activity detection kit. It analyzes the advantages of homogeneous detection methods based on TR-FRET and ADP quantification compared to traditional techniques, and explores the application strategies of this kit in EGFR inhibitor screening, mutant selectivity evaluation, and resistance mechanism research.

Recent Advances
Product Information

Recent Advances

EGFR Kinase Activity Assay Kit: A Core Tool from Target Mechanism to Precision Drug Screening

Summary
This article systematically elaborates on the technical principles and application systems of the EGFR kinase activity assay kit, highlighting the central role of EGFR as a receptor tyrosine kinase in tumorigenesis and the impact of its mutation types on drug development. It analyzes the advantages of homogeneous detection methods based on TR-FRET and ADP quantification compared to traditional techniques and explores the application strategies of this kit in EGFR inhibitor screening, mutant selectivity evaluation, and resistance mechanism research.

I. The Central Driving Role of EGFR Kinase in Tumorigenesis

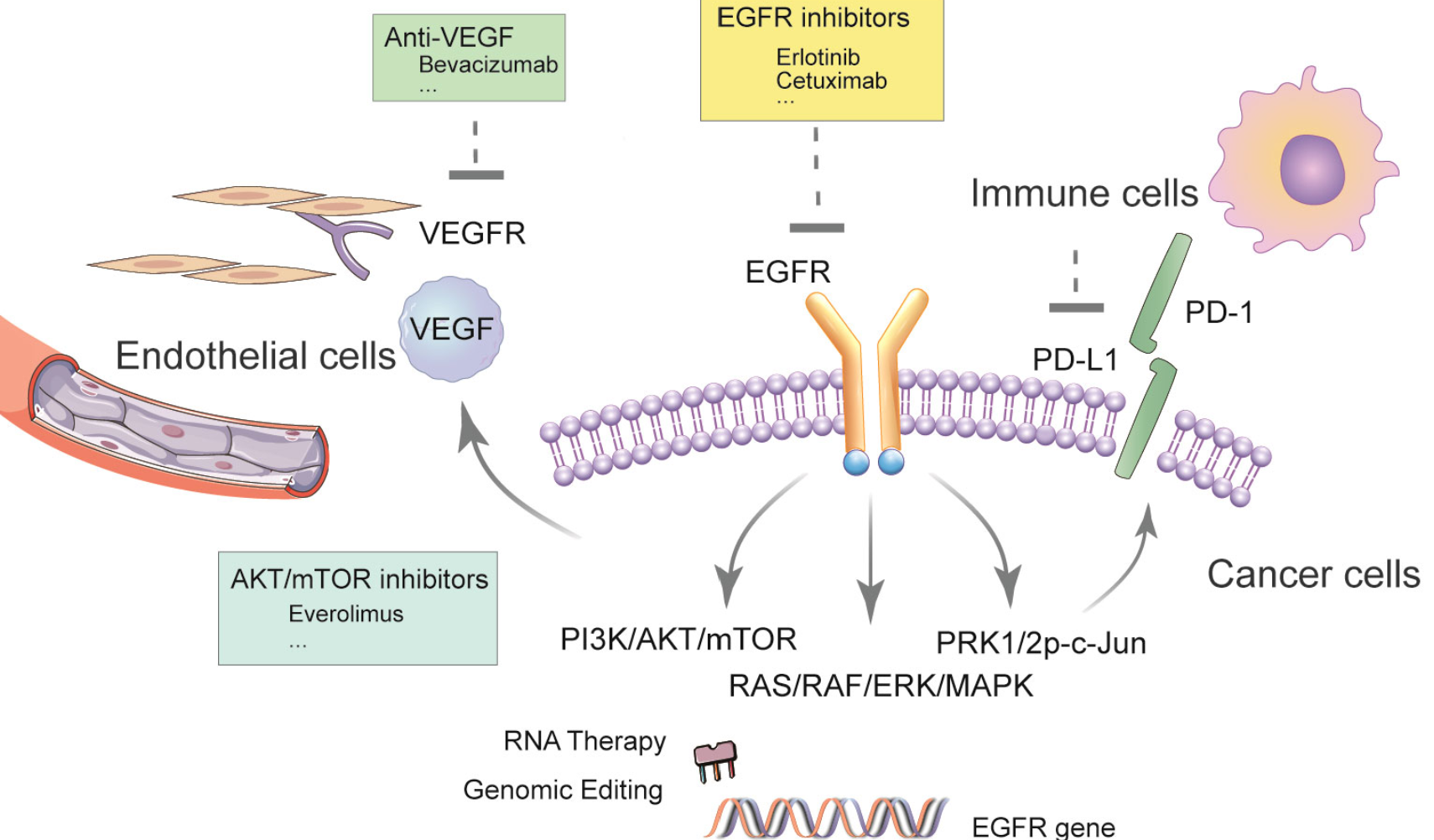

The Epidermal Growth Factor Receptor (EGFR) is a key member of the receptor tyrosine kinase family, encoded by the EGFR gene located in the p11.2 region of chromosome 7. The EGFR protein consists of 1,186 amino acid residues and is a type I transmembrane glycoprotein with an extracellular ligand-binding domain, a single transmembrane helix, and an intracellular tyrosine kinase domain. When ligands such as EGF bind to the extracellular domain of EGFR, they induce receptor dimerization and autophosphorylation of the intracellular kinase domain, thereby activating downstream signaling pathways like RAS-RAF-MEK-ERK and PI3K-AKT, which drive cell proliferation, differentiation, and survival. In various malignant tumors, EGFR is abnormally activated due to gene mutations, amplification, or overexpression, making it one of the most important therapeutic targets for solid tumors such as non-small cell lung cancer, colorectal cancer, and head and neck squamous cell carcinoma. Therefore, accurate and efficient measurement of EGFR kinase activity is a fundamental technical requirement for targeted drug discovery and mechanistic research.

II. EGFR Mutation Types and Drug Development Strategies

EGFR abnormal activation is primarily achieved through three mechanisms, each of which has a decisive impact on drug development strategies. The first category is kinase domain activating mutations, including exon 19 deletions and the L858R point mutation, which together account for approximately 90% of EGFR mutations in non-small cell lung cancer. These mutations cause EGFR to remain persistently active without ligand stimulation and are sensitive to first- to third-generation EGFR inhibitors. The second category is acquired resistance mutations, most notably the T790M gatekeeper mutation, found in about 50% to 60% of patients resistant to first-generation EGFR inhibitors. Third-generation inhibitors like osimertinib effectively target T790M mutations, but their clinical use has led to the emergence of fourth-generation resistance mutations such as C797S. The third category includes extracellular domain mutations and gene amplification, such as the EGFRvIII mutant and wild-type EGFR amplification. These complex mutation spectra necessitate that EGFR kinase activity assay kits must distinguish the activity of different mutants to support the screening and evaluation of selective inhibitors.

III. Technical Principles and Evolution of EGFR Kinase Activity Assays

The core of EGFR kinase activity detection lies in quantitatively measuring the progress of phosphorylation reactions. Traditional detection methods mainly include radioactive isotope labeling, antibody detection, and fluorescence polarization. While radioactive methods offer high sensitivity, they involve safety management issues with radioactive materials. Antibody detection relies on specific phosphorylation antibodies, limiting throughput and increasing costs. Fluorescence polarization allows homogeneous operation but is susceptible to compound fluorescence interference.

ADP quantification-based detection methods have rapidly developed in recent years. Their core logic is that in kinase-catalyzed phosphotransfer reactions, each molecule of ATP consumed generates one molecule of ADP. By quantitatively detecting ADP production, kinase catalytic activity can be indirectly reflected. This method typically employs a coupled enzyme chemiluminescence detection system—first, an ATP removal reagent is added to terminate the kinase reaction and eliminate interference from residual ATP. Then, an ADP detection reagent is added to convert the generated ADP back into ATP, producing bioluminescence signals proportional to ADP concentration through the luciferase/luciferin system. This design establishes a precise quantitative relationship between luminescence intensity and kinase activity, with detection sensitivity reaching the picomolar level.

TR-FRET technology monitors kinase reactions by detecting energy transfer between two fluorescent molecules. When the donor molecule is excited at 340 nm, if the donor and acceptor molecules are within 5 to 10 nm of each other, energy is transferred from the donor to the acceptor via FRET. Using lanthanide elements as donors, their millisecond-long fluorescence lifetime enables time-resolved detection, effectively avoiding background interference from excitation light scattering and medium components. The EGFR kinase activity assay kit can select ADP quantification or TR-FRET detection strategies based on experimental needs.

IV. Application Strategies of EGFR Kinase Activity Assay Kits in Drug Discovery

The EGFR kinase activity assay kit is integral to multiple key stages of targeted drug discovery. In compound screening, it can be used to establish high-throughput screening platforms to identify lead compounds with inhibitory activity from large compound libraries. In mutant selectivity evaluation, parallel detection of compound inhibitory activity against wild-type EGFR and mutant EGFR (e.g., L858R/T790M, 19del/T790M, and C797S) can assess mutation selectivity, guiding the development of fourth-generation EGFR inhibitors. In mechanism-of-action studies, varying ATP concentrations can determine inhibitor competition types—competitive inhibitors show lower half-maximal inhibitory concentrations (IC50) at low ATP concentrations, while non-competitive inhibitors' IC50 is unaffected by ATP concentration. In resistance mechanism research, the kit can evaluate compound inhibitory activity against resistant mutants, providing solutions to overcome clinical resistance.

In experimental design, the following key factors should be considered. Substrate and ATP concentrations need optimization to ensure the detection system operates within the optimal linear range. Reaction time and temperature should be standardized based on EGFR kinase characteristics. Positive and negative controls are recommended to validate the experimental system. For mutant EGFR, substrate concentration and reaction time can be adjusted according to their kinase activity profiles.

V. Conclusion

In practical applications of EGFR kinase activity detection, high-quality detection reagents are key to ensuring data reliability and experimental reproducibility. To meet the needs of EGFR kinase activity detection, UniOne® offers the TR-FRET KinActive-EGFR Kit. This product, based on TR-FRET detection technology, has the following core features: it utilizes the long fluorescence lifetime of lanthanide element donors to effectively reduce background interference through time-resolved detection; its homogeneous operation mode requires no washing or separation steps, making it compatible with high-throughput formats in 96- and 384-well plates; it offers stable signals, supporting batch processing and flexible time windows; and it is suitable for kinase activity detection of wild-type EGFR and various mutants (including L858R, T790M, L858R/T790M, and 19del/T790M). This kit is applicable to scenarios such as EGFR inhibitor screening and structure-activity relationship analysis, mutant selectivity evaluation, and EGFR signaling pathway mechanism research.

As a core tool in EGFR-targeted drug development, the EGFR kinase activity assay kit, with its homogeneous detection methods based on TR-FRET and ADP quantification, provides systematic solutions for the discovery and optimization of kinase inhibitors. From wild-type EGFR to various resistant mutants, from compound screening to mechanism research, the EGFR kinase activity assay kit continues to play an irreplaceable supporting role. The UniOne® TR-FRET KinActive-EGFR Kit provides reliable tool support for EGFR kinase activity detection, driving innovation in the field of EGFR-targeted drug development.

This article is reviewed and published by the technical expert team of UA

Disclaimer: This article partially utilizes artificial intelligence assistance in its creation. If any content involves copyright or intellectual property issues, please let us know and we promise to verify and remove it as soon as possible.
